Antelope Pico POV Minature Ultra Slowmotion

The Antelope Pico miniature slow motion and live broadcast camera system offers spectacular extreme slow motion replay and never seen before details from vantage points where larger cameras cannot be mounted. The Antelope Pico camera records up to 350 frames per second in native HD, and simultaneously supplies a 1080i50/60 signal via HDSDI for line-cut purposes.

Category: Tags: , , ,

Description

Broadcast POV Ultra Slowmotion

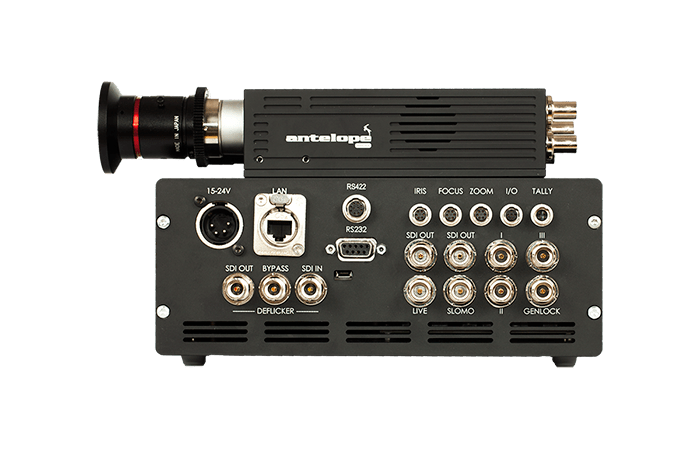

TAntelope broadcast camerashe system is based on a 2/3“ CMOS 2k chip and provides high detail and unsurpassed light sensitivity. The optional unique deflickering technology (pat. pend.) eliminates lighting related flicker in real-time. Distances up to 80m between camera head and CCU can be covered via a 3-channel BNC cable. The camera head‘s extremely small dimensions of 176x40x44 mm allow unusual camera point of views in feature film, live broadcast, documentary or industrial environment.





Specifications

Sensor 2/3″ CMOS
Resolution 1920×1080
Shutter Global (1/25-1/10000s)
Video output 2x Live and 2x Replay
Memory 8GB
Frame rate up to 350 FPS
Sensitivity ISO 640 ASA
Temperature -20°C to 50°C
Weight CCU  1200g
Weight Camerahead   380g
Dimensions CCU 288x222x89mm

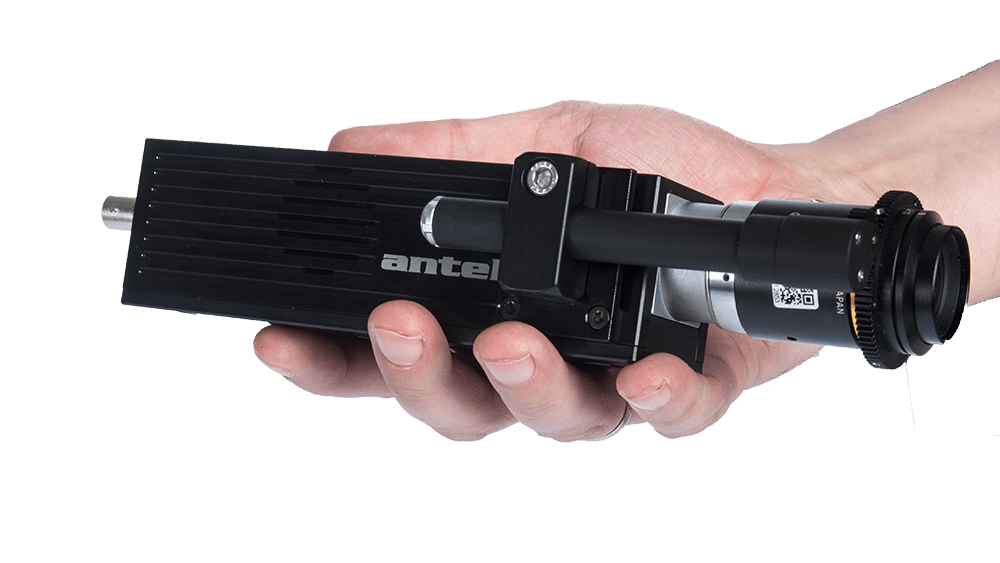

Dimensions Camerahead 176x40x44mm
