NAC 10MP Memrecam GO-4K

The NAC GO-4K provides a staggering 10MP Resolution at 1,000fps and is a compact and lightweight camera suitable for a wide range of uses in Automotive, Military, Academic, Manufacturing, R&D and Testing industries.

Description

Overview

The new MEMRECAM GO-4K Smart High Speed Camera, is equipped with a 10-megapixel high-definition sensor on a new technology platform and delivers 1,000 fps at 4608×2176 pixels. Keeps high image quality in wide-field-of-view shooting which improves the accuracy of image analysis. Portable and easy install compact and lightweight body (128 x 128 x 135 mm, weight 2.9 kg) enables capturing high speed phenomena in scenes.

Features

Compact & Light Weight

Compact and light weight camera body at 128×128×135mm – 2.9kg for easy installation in locations with limited space.

Saves to SSD

Easy Operation

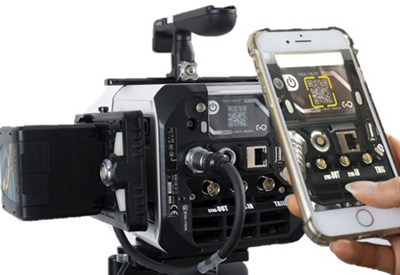

Camera can be controlled from a mobile device or PC via web browser without the need for dedicated control software.
*Wi-fi router is required

Easy Connector Access

Connector for synchronization with existing camera models

Outdoor Use

Outdoor Use & Narrow Spaces

  • Perfect for applications where there is no power
  • Instantly powers on without the need for cables, minimizing set up
IDX Battery

Battery Operation

  • Supports IDX batteries
  • Simple cabling without AC Power
Saves to SSD

Data Saves to SSD

  • PC-less operation
  • Easy to adjust imaging view with your smartphone or tablet

Specifications

Sensor 10 Megapixel, CMOS
Active Pixel 4,608 x 2,176
ISO (REI) ISO 100~3,200 (color)
ISO 400~12,500 (mono)
Electric Shutter 1/10~1/909,000 sec
Memory 16GB / 32GB / 64GB
Bit Depth Sensor Output 10/12bit
* Switches automatically according to chosen fps
Recording 12bit
Interface 1000BASE-T / USB 3.1 / USB 2.0
Canera Control Mobile device / PC
Power 13-32V DC
Dimensions (WxHxD) Approx. 128 × 128 × 135mm (excluding protrusions)
Weight Approx. 2.9kg
